Accurate and reliable

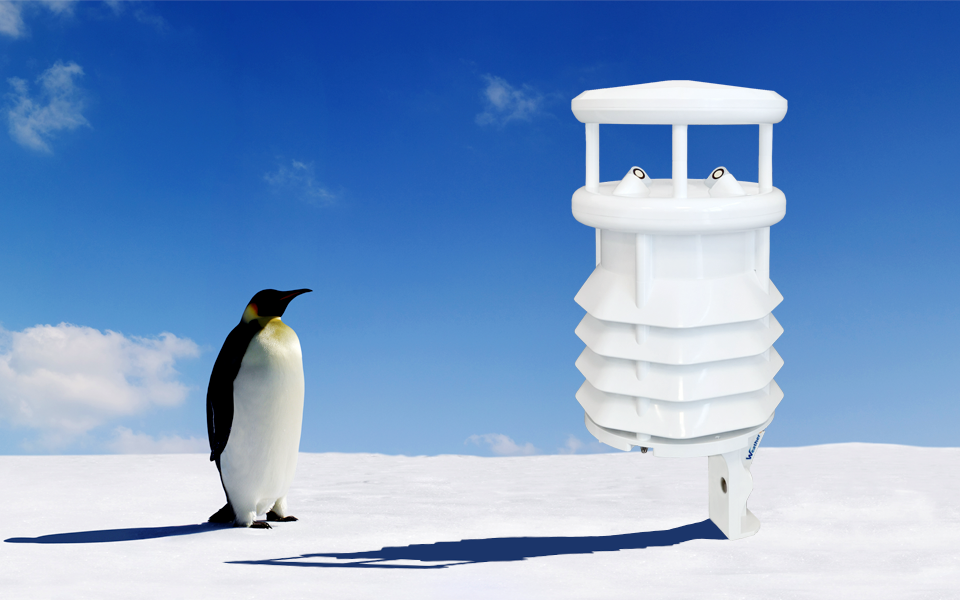

All-in-one weather sensor

WQ600

Measure various weather elements with ONE sensor.


Our all-in-one weather sensor WQ600 is unique and cost-effective.

Measure and observe the essential weather parameters simultaneously.

Get the meteorological and air quality information at the desired location with WQ600 in real time.

WQ600 all-in-one weather sensor can measure six weather elements like wind speed, wind direction, temperature, humidity, pressure, air quality (PM10, PM2.5).


 Built-in GPS : Accurate synchronization of time and location

 Built-in electronic compass : Automatic correction of wind direction

 Fan aspirated radiation shield : Accurate measurment of temperature and humidity

 Possible to connect pulse singals to the sensor

 RS232 or RS485 interfaces are available

 Bluetooth and Wi-Fi communcations are supported

 Easy to install and affordable


The real time data observed from WQ600 weather sensor(s) on the site(s) can be monitored on WeatherQ anytime and anywhere.



 The observed weather data is sent to our cloud server and can be checked by tables and graphs through WeatherQ.

 Statistical data retreival (daily, monthly, yearly, analysis by element, wind rose, etc.)

 A number of sensors can be connected to WeatherQ at once.

 Optimized to where big data is needed (smart city, energy, road, port, military, forest fire monitoring, environmental areas, etc.)

 All members of WeatherQ can share real-time data observed from WQ sensors

Specifications



• Wind speed : Range 0 ~ 30m/s,  Accuracy  ±0.3m/s

• Wind direction : Range 0~360°, Accuracy <3°

• Temperature : Range -40~+80℃, Accuracy typ. ±0.1℃

• Humidity : Range 0~100%, Accuracy typ. ±1%

• Pressure : Range 300 ~1200 hPa, Accuracy typ. ±0.1 hPa
• PM2.5 : Range 0~1,000μg/㎥, Accuracy ±10μg/㎥(@0 to 100 μg/㎥), ±10%m.v.(@100 to 1000 μg/㎥)
• PM10 : Range 0~1,000μg/㎥, Accuracy ±25μg/㎥(@0 to 100 μg/㎥), ±25%m.v.(@100 to 1000 μg/㎥)
• Interface : RS232 or RS485
• Communication protocol : ASCII
• Power supply : 10 ~ 24VDC
• Power consumption : Approx. 10W(w/heating), 3W(w/o heating)
• Protection : IP68
• Cable : 5m

Customer reference

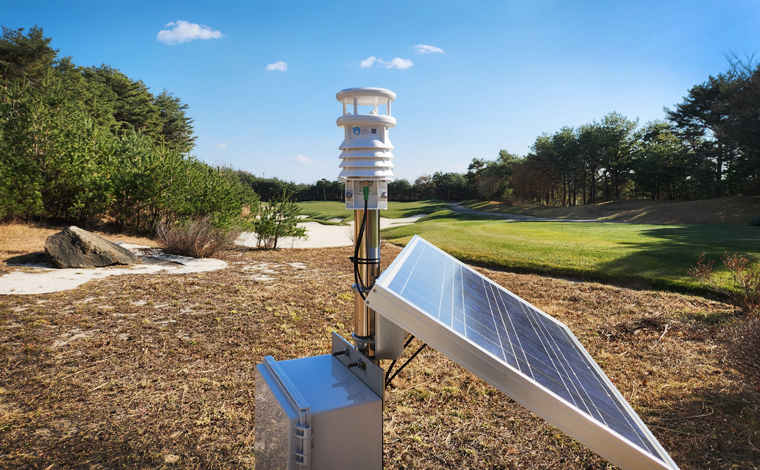

A golf course monitors the weather conditions like wind, temperature, pressure, and PM2.5/PM10 using our WQ600.

The data measured by WQ600 and various statistical data are available on WeatherQ on web and app(iOS and Andriod) as a premimum service.
