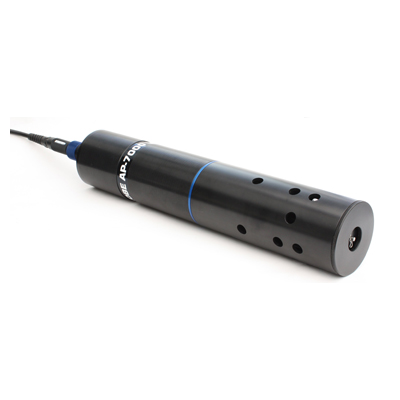

AP-7000-SDI Aquaprobe

측정항목

- 기본 10개 :

  pH, ORP, Conductivity (EC), TDS*, SSG*, Resistivity*, Salinity*, Optical DO, Temp., Depth

  (* :  계산값, EC 및 및 온도 측정값으로 계산)

- 예비 포트 (Aux port) 6개(옵션) : ISE 전극 or Optical 전극 구분 없이 장착 가능

  ISE 전극 (Ammonium/Ammonia*, Chloride, Nitrate, Calcium)

  (* : 계산값, Ammonium, pH, temp. 측정값으로 계산)

  Optical 전극 (Turbidity, Chlrorophyll, Blue Green Algea, Rhodamine, Fluorescein, Refined Oil, CDOM/FOM)

------------------------------------------------------------------------------------------------------------------------------------------------

측정범위

표준 파라미터

- Dissolove oxygen : 0 ~ 500.0 % / 0 ~ 50.00 mg/L

- Depth : ±0 ~ 99.99m

- Conductivity (EC) : 0 ~ 200 mS/cm(0 ~ 200,000 μS/cm)

- TDS : 0 ~ 100,000 mg/L(ppm)

- Resistivity : 5 Ω·cm ~ 1 ㏁·cm

- Salinity : 0 ~ 70 PSU / 0 ~ 70.00 ppt (g/kg)

- Seawater Specific Gravity : 0 ~ 50 σt

- pH : 0 ~ 14 pH / ±625 mV

- ORP : ±2000 mV

- Temp. : -5 ~ +50℃



ISE 전극 (옵션)

- Ammonium : 0 ~ 9,000 mg/L (ppm)

- Ammonia : 0 ~ 9,000 mg/L (ppm)

- Chloride : 0 ~ 20,000 mg/L (ppm)

- Fluoride : 0 ~ 1,000 mg/L (ppm)

- Nitrate : 0 ~ 30,000 mg/L (ppm)

- Calcium : 0 ~ 2,000 mg/L (ppm)



Optical 전극 (옵션)

- Turbity : 0 ~ 3000 NTU

- Chlorophyll : 0 ~ 500.0 ㎍/L (ppb)

- Phycocyanin (freshwater BGA) : 0 ~ 300,000 cells

- Phycerythrin (marine BGA) : 200 cells/mL

- Rhodamine WT Dye : 0 ~ 500.0 ㎍/L (ppb)

- Fluorescein Dye : 0 ~ 500.0 ㎍/L (ppb)

- Refined Oil :  0 ~ 10,000 ㎍/L (ppb) (Napthalene)

- CDOM/FOM : 0 ~ 20,000 ㎍/L (ppb) (Quinine Sulphate)

------------------------------------------------------------------------------------------------------------------------------------------------

정확도

표준 파라미터

- Dissolove oxygen : 0 ~ 200.0 % : 측정값의 ±1% / 200 ~ 500% : ±10%

- Depth : ±0.2% FS

- Conductivity (EC) : 측정값의 ±1%

- TDS : 측정값의 ±1%

- Resistivity :측정값의 ±1%

- Salinity : 측정값의 ±1%

- Seawater Specific Gravity : ±1.0 σt

- pH : ±0.1pH/±5mV

- ORP : ±5mV

- Temp. : ±0.5℃



ISE 전극 (옵션)

- Ammonium : 측정값의±10% or 2ppm (둘 중 큰 값)

- Ammonia : 측정값의±10% or 2ppm (둘 중 큰 값)

- Chloride : 측정값의±10% or 2ppm (둘 중 큰 값)

- Fluoride : 측정값의±10% or 2ppm (둘 중 큰 값)

- Nitrate : 0측정값의±10% or 2ppm (둘 중 큰 값)

- Calcium : 측정값의±10% or 2ppm (둘 중 큰 값)



Optical 전극 (옵션)

- Turbity : auto-ranged scale의 ±5%

- Chlorophyll : 측정값의 ±5%

- Phycocyanin (freshwater BGA) : 측정값의 ±10%

- Phycerythrin (marine BGA) : 측정값의 ±10%

- Rhodamine WT Dye : 측정값의 ±5%

- Fluorescein Dye : 측정값의 ±5%

- Refined Oil :  측정값의 ±10%



- CDOM/FOM : 측정값의 ±10%

------------------------------------------------------------------------------------------------------------------------------------------------

일반

- 출력 : SDI-12, Modbus 출력 지원

- 보호등급 : IP68

- 삽입 깊이 : 최소 75mm, 최대 100m (100m 삽입기간 : 1주, 영구 삽입 시 : 30m 적합)

- 사이즈 : 440(L) x 77(Ø)mm

- 운영온도 : -5 ~ +70℃

------------------------------------------------------------------------------------------------------------------------------------------------

주요기능/특징

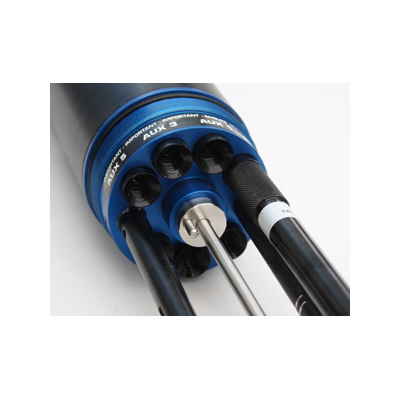

- 기본 파라미터 외에 ISE 전극(옵션) 또는 Optical 전극(옵션) 6개를 예비포트 (Aux port)에 장착하여 한 번에 최대 17개의 파라미터 측정 가능

- 30m까지 지속 삽입 가능, 100m까지 단기 삽입(약 1주) 가능

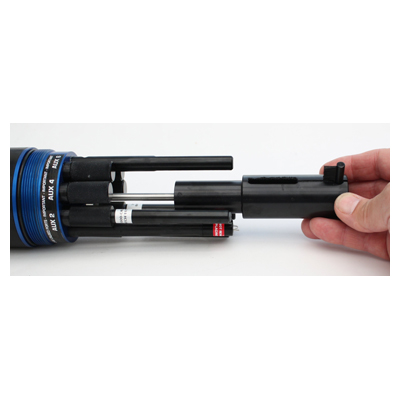

- 자동 회전 브러쉬가 장착되어 있어 전극을 주기적으로 청소 가능하여 장기 설치에 유리함

- 자동 회전 브러쉬의 주기적인 교체가 필요하나 교체 작업이 용이함

- AquaConn 커넥터가 장착된 다양한 길이의 케이블 (옵션, 3m, 10m, 20m, 30m 사용 가능, 그 외 연장 케이블 협의 가능)

- 다양한 데이터로깅 옵션(AM-200 GPS Aquarmeter, AquaLogger-7000, BlackBox) 이용 가능

<일반>

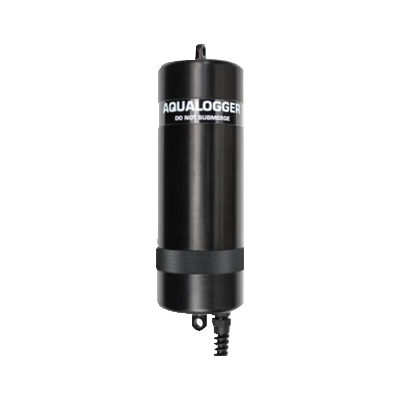

Aqualogger_400x400.jpg            Probe 로깅 옵션/ AquaLogger-7000

------------------------------------------------------------------------------------------------------------------------------------------------

AC-PCKIT_USB interface_400x400.jpg            전극 교정 PC kit / AP-PCkit

------------------------------------------------------------------------------------------------------------------------------------------------



                        AquaConn 커넥터 장착 3m 케이블 / EX-7000-3M

------------------------------------------------------------------------------------------------------------------------------------------------



                        AquaConn 커넥터 장착 10m 케이블 / EX-7000-10M

------------------------------------------------------------------------------------------------------------------------------------------------



                        AquaConn 커넥터 장착 20m 케이블 / EX-7000-20M

------------------------------------------------------------------------------------------------------------------------------------------------



                        AquaConn 커넥터 장착 30m 케이블 / EX-7000-30M

------------------------------------------------------------------------------------------------------------------------------------------------



                        Flow-through cell / FLOW-7000

------------------------------------------------------------------------------------------------------------------------------------------------



                        10 disposable brush pairs / AP-BRUSH

------------------------------------------------------------------------------------------------------------------------------------------------



                        Storage cap / PH-SC

------------------------------------------------------------------------------------------------------------------------------------------------



                        Rugged hard carry case / AP-7000-RCASE

------------------------------------------------------------------------------------------------------------------------------------------------



                        Probe hanger / AP-BKT-7000

------------------------------------------------------------------------------------------------------------------------------------------------

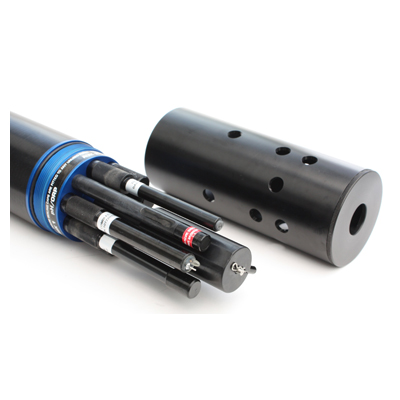

                        Protective probe sleeve cap / AP-CAP-7000

------------------------------------------------------------------------------------------------------------------------------------------------



                        Optical DO sensor cap / DO-CAP

------------------------------------------------------------------------------------------------------------------------------------------------



<전극>



                        pH/ORP 결합 전극 / 7000-PH/ORP

------------------------------------------------------------------------------------------------------------------------------------------------



                        Ammonium 전극 (ISE 전극)/ 7000-AMM

------------------------------------------------------------------------------------------------------------------------------------------------



                        Nitrate 전극 (ISE 전극) / 7000-NIT

------------------------------------------------------------------------------------------------------------------------------------------------



                        Chloride 전극 (ISE 전극) / 7000-CHL

------------------------------------------------------------------------------------------------------------------------------------------------



                        Calcium 전극 (ISE 전극) / 7000-CAL

------------------------------------------------------------------------------------------------------------------------------------------------



                        Fluoride 전극 (ISE 전극) / 7000-FLU

------------------------------------------------------------------------------------------------------------------------------------------------



                        Turbidity 전극 (Optical 전극) / 7000-TURB

------------------------------------------------------------------------------------------------------------------------------------------------



                        Blue green algae 전극 (Optical 전극, Phycocyanin, fresh water) / 7000-BGA-PC

------------------------------------------------------------------------------------------------------------------------------------------------



                        Blue green algae 전극 (Optical 전극, Phycoerythrin, marine water) / 7000-BGA-PE

------------------------------------------------------------------------------------------------------------------------------------------------



                        Rhodamine WT dye 전극 (Optical 전극) / 7000-RHOD

------------------------------------------------------------------------------------------------------------------------------------------------



                        Fluorescein dye 전극 (Optical 전극) / 7000-FSCEIN

------------------------------------------------------------------------------------------------------------------------------------------------



                        Chlorophyll 전극 (Optical 전극) / 7000-CPHYLL

------------------------------------------------------------------------------------------------------------------------------------------------


                        Refined oil 전극 (Optical 전극, hydrocarbons) / 7000-REFOIL

------------------------------------------------------------------------------------------------------------------------------------------------



                        CDOM 전극 (Optical 전극) / 7000-CDOM

------------------------------------------------------------------------------------------------------------------------------------------------



<교정/유지보수용>



                        250mL RapidCal solution / RC-300

------------------------------------------------------------------------------------------------------------------------------------------------



                        500mL RapidCal solution / RC-600

------------------------------------------------------------------------------------------------------------------------------------------------



                        3L RapidCal powder (Dilute with DI water ONLY) / RC-3LP

------------------------------------------------------------------------------------------------------------------------------------------------



                        10L RapidCal powder (Dilute with DI water ONLY) / RC-10LP

------------------------------------------------------------------------------------------------------------------------------------------------



                        250mL pH7.00 buffer / PH-700/300

------------------------------------------------------------------------------------------------------------------------------------------------



                        500mL pH7.00 buffer / PH-700/600

------------------------------------------------------------------------------------------------------------------------------------------------



                        250mL pH4.01 buffer / PH-401/300

------------------------------------------------------------------------------------------------------------------------------------------------



                        500mL pH4.01 buffer / PH-401/600

------------------------------------------------------------------------------------------------------------------------------------------------



                        150mL Zero oxygen solution / ZO-150

------------------------------------------------------------------------------------------------------------------------------------------------



                        500mL Zero oxygen solution / ZO-600

------------------------------------------------------------------------------------------------------------------------------------------------



                        25mL DO filling solution / DO-25

------------------------------------------------------------------------------------------------------------------------------------------------



                        25mL Storage solution / SS-25

------------------------------------------------------------------------------------------------------------------------------------------------



                        Calibration/Rinse bottle / BOT-300

------------------------------------------------------------------------------------------------------------------------------------------------



                        500mL bottle of CDOM calibration solution for point 2 CDOM calibration / CDOM-CAL-600

------------------------------------------------------------------------------------------------------------------------------------------------



                        25mL bottle of 20% WT Rhodamine dye stock calibration / RHOD-CAL

                        (Dilutions of this dye can be used to calibrate Chlorophyll, and both blue-green algae sensors.)

------------------------------------------------------------------------------------------------------------------------------------------------



                        1L bottle containing 0.5g Fluorescein power / FSCEIN-CAL

                        (Add 1L of deionised water for 500mg/L stock detailed in the manual.)

------------------------------------------------------------------------------------------------------------------------------------------------



                        500mL bottle of 1000ppm Ammonium sotck solution for dillution / AMM-CAL

------------------------------------------------------------------------------------------------------------------------------------------------



                        500mL bottle of 1000ppm Nitrate sotck solution for dillution / NIT-CAL

------------------------------------------------------------------------------------------------------------------------------------------------



                        500mL bottle of 1000ppm Chloride sotck solution for dillution / CHL-CAL

------------------------------------------------------------------------------------------------------------------------------------------------



                        500mL bottle of 1000ppm Calcium sotck solution for dillution / CAL-CAL

------------------------------------------------------------------------------------------------------------------------------------------------



                        500mL bottle of 1000ppm Fluoride sotck solution for dillution / FLU-CAL

------------------------------------------------------------------------------------------------------------------------------------------------



                        1000NTU calibration solution 500mL / TURB-1000

------------------------------------------------------------------------------------------------------------------------------------------------



                        250mV ORP calibration solution 500mL / ORP-250

------------------------------------------------------------------------------------------------------------------------------------------------
이엘피
공지사항 목록
파일명 용량 등록일
Aquaread product_e_catalogue.pdf 3.3 MB 2017.01.17
Aquaprobe AP-7000 Instruction Manual Rev L.pdf 3.5 MB 2017.01.17
