수질_Probe (센서)
측정항목
- 기본 10개 : AP-2000 기본 측정항목+Depth 추가
pH, ORP, Conductivity (EC), TDS*, SSG*, Resistivity*, Salinity*, Optical DO, Temp., Depth
(* : 계산값, EC 및 및 온도 측정값으로 계산)

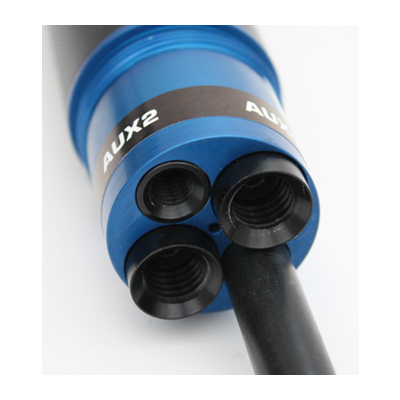

- 예비 포트 (Aux port) 1개 : ISE 전극 1개
ISE 전극 (Ammonium/Ammonia*, Chloride, Nitrate, Calcium)
(* : 계산값, Ammonium, pH, temp. 측정값으로 계산)
- 예비 포트 (Aux port) 1개 : Optical 전극 1개
Optical 전극 (Turbidity, Chlrorophyll, Blue Green Algea, Rhodamine, Fluorescein, Refined Oil, CDOM/FOM)
------------------------------------------------------------------------------------------------------------------------------------------------
측정범위
표준 파라미터
- Dissolove oxygen : 0 ~ 500.0 % / 0 ~ 50.00 mg/L
- Depth : ±0 ~ 60.00m (Probe 100까지 삽입 가능하나, 깊이값 최대 60m까지만 표출 가능)
- Conductivity (EC) : 0 ~ 200 mS/cm(0 ~ 200,000 μS/cm)
- TDS : 0 ~ 100,000 mg/L(ppm)
- Resistivity : 5 Ω·cm ~ 1 ㏁·cm
- Salinity : 0 ~ 70 PSU / 0 ~ 70.00 ppt (g/kg)
- Seawater Specific Gravity : 0 ~ 50 σt
- pH : 0 ~ 14 pH / ±625 mV
- ORP : ±2000 mV
- Temp. : -5 ~ +50℃
ISE 전극 (옵션)
- Ammonium : 0 ~ 9,000 mg/L (ppm)
- Ammonia : 0 ~ 9,000 mg/L (ppm)
- Chloride : 0 ~ 20,000 mg/L (ppm)
- Fluoride : 0 ~ 1,000 mg/L (ppm)
- Nitrate : 0 ~ 30,000 mg/L (ppm)
- Calcium : 0 ~ 2,000 mg/L (ppm)
Optical 전극 (옵션)
- Turbity : 0 ~ 3000 NTU
- Chlorophyll : 0 ~ 500.0 ㎍/L (ppb)
- Phycocyanin (freshwater BGA) : 0 ~ 300,000 cells
- Phycerythrin (marine BGA) : 200 cells/mL
- Rhodamine WT Dye : 0 ~ 500.0 ㎍/L (ppb)
- Fluorescein Dye : 0 ~ 500.0 ㎍/L (ppb)
- Refined Oil : 0 ~ 10,000 ㎍/L (ppb) (Napthalene)
- CDOM/FOM : 0 ~ 20,000 ㎍/L (ppb) (Quinine Sulphate)
------------------------------------------------------------------------------------------------------------------------------------------------
정확도
표준 파라미터
- Dissolove oxygen : 0 ~ 200.0 % : 측정값의 ±1% / 200 ~ 500% : ±10%
- Depth : ±0.5% FS
- Conductivity (EC) : 측정값의 ±1%
- TDS : 측정값의 ±1%
- Resistivity :측정값의 ±1%
- Salinity : 측정값의 ±1%
- Seawater Specific Gravity : ±1.0 σt
- pH : ±0.1pH/±5mV
- ORP : ±5mV
- Temp. : ±0.5℃
ISE 전극 (옵션)
- Ammonium : 측정값의±10% or 2ppm (둘 중 큰 값)
- Ammonia : 측정값의±10% or 2ppm (둘 중 큰 값)
- Chloride : 측정값의±10% or 2ppm (둘 중 큰 값)
- Fluoride : 측정값의±10% or 2ppm (둘 중 큰 값)
- Nitrate : 0측정값의±10% or 2ppm (둘 중 큰 값)
- Calcium : 측정값의±10% or 2ppm (둘 중 큰 값)
Optical 전극 (옵션)
- Turbity : auto-ranged scale의 ±5%
- Chlorophyll : 측정값의 ±5%
- Phycocyanin (freshwater BGA) : 측정값의 ±10%
- Phycerythrin (marine BGA) : 측정값의 ±10%
- Rhodamine WT Dye : 측정값의 ±5%
- Fluorescein Dye : 측정값의 ±5%
- Refined Oil : 측정값의 ±10%
- CDOM/FOM : 측정값의 ±10%
------------------------------------------------------------------------------------------------------------------------------------------------
일반
- 보호등급 : IP68
- 삽입 깊이 : 최소 75mm, 최대 100m (100m 삽입기간 : 1주, 영구 삽입 시 : 30m 적합), 깊이값 최대 60m까지만 표출 가능
- 사이즈 : 290(L) x 42(Ø)mm
- 운영온도 : -5 ~ +70℃
------------------------------------------------------------------------------------------------------------------------------------------------
주요기능/특징
- AP-2000 probe의 기본 파라미터 외에 깊이 측정 가능 (깊이 센서 추가 장착)
- ISE 전극 1개(옵션), Optical 전극 1개(옵션)을 추가하여 여러 파라미터 측정 가능
- EC 센서와 Optical DO 센서가 하나의 전극에 통합되어 있음
- 30m까지 지속 삽입 가능, 100m까지 단기 삽입(약 1주) 가능
- AquaConne 커넥터가 장착된 다양한 길이의 케이블 (옵션, 3m, 10m, 20m, 30m 사용 가능, 그 외 연장 케이블 협의 가능)
- 다양한 데이터로깅 옵션(AM-200 GPS Aquarmeter, AquaLogger-2000, BlackBox) 이용 가능
<일반>
------------------------------------------------------------------------------------------------------------------------------------------------
데이터 컨버터 (SDI-12 or Modbus[RS485]) / BLACKBOX
------------------------------------------------------------------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------------------------------------------------------------
AquaConn 커넥터 장착 3m 케이블 / EX-2000-3M
------------------------------------------------------------------------------------------------------------------------------------------------
AquaConn 커넥터 장착 10m 케이블 / EX-2000-10M
------------------------------------------------------------------------------------------------------------------------------------------------
AquaConn 커넥터 장착 20m 케이블 / EX-2000-20M
------------------------------------------------------------------------------------------------------------------------------------------------
AquaConn 커넥터 장착 30m 케이블 / EX-2000-30M
------------------------------------------------------------------------------------------------------------------------------------------------
Flow-through cell / FLOW-2000
------------------------------------------------------------------------------------------------------------------------------------------------
Storage cap / PH-SC
------------------------------------------------------------------------------------------------------------------------------------------------
Hard carry case / AP-2000-CASE
------------------------------------------------------------------------------------------------------------------------------------------------
Rugged hard carry case / AP-2000-RCASE
------------------------------------------------------------------------------------------------------------------------------------------------
Probe hanger / AP-BKT-2000
------------------------------------------------------------------------------------------------------------------------------------------------

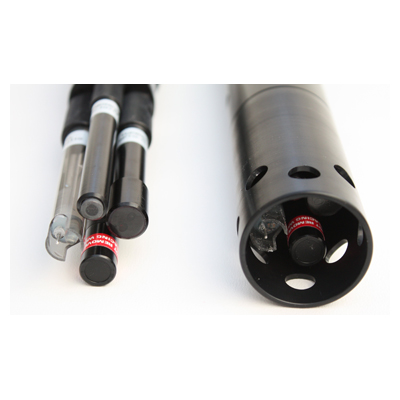

Protective probe sleeve cap / AP-CAP-2000
------------------------------------------------------------------------------------------------------------------------------------------------
Optical DO sensor cap / DO-CAP
------------------------------------------------------------------------------------------------------------------------------------------------
<전극>

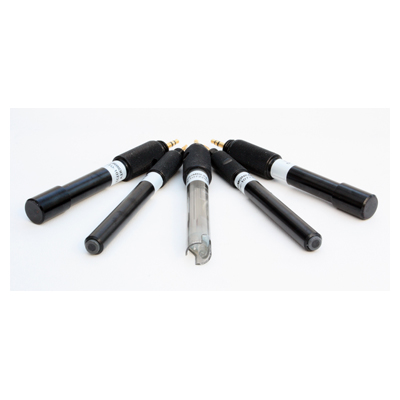

pH/ORP 결합 전극 / 2000-PH/ORP
------------------------------------------------------------------------------------------------------------------------------------------------
Ammonium 전극 (ISE 전극)/ 2000-AMM
------------------------------------------------------------------------------------------------------------------------------------------------
Nitrate 전극 (ISE 전극) / 2000-NIT
------------------------------------------------------------------------------------------------------------------------------------------------
Chloride 전극 (ISE 전극) / 2000-CHL
------------------------------------------------------------------------------------------------------------------------------------------------
Calcium 전극 (ISE 전극) / 2000-CAL
------------------------------------------------------------------------------------------------------------------------------------------------
Fluoride 전극 (ISE 전극) / 2000-FLU
------------------------------------------------------------------------------------------------------------------------------------------------
Turbidity 전극 (Optical 전극) / 2000-TURB
------------------------------------------------------------------------------------------------------------------------------------------------
Blue green algae 전극 (Optical 전극, Phycocyanin, fresh water) / 2000-BGA-PC
------------------------------------------------------------------------------------------------------------------------------------------------
Blue green algae 전극 (Optical 전극, Phycoerythrin, marine water) / 2000-BGA-PE
------------------------------------------------------------------------------------------------------------------------------------------------
Rhodamine WT dye 전극 (Optical 전극) / 2000-RHOD
------------------------------------------------------------------------------------------------------------------------------------------------
Fluorescein dye 전극 (Optical 전극) / 2000-FSCEIN
------------------------------------------------------------------------------------------------------------------------------------------------
Chlorophyll 전극 (Optical 전극) / 2000-CPHYLL
------------------------------------------------------------------------------------------------------------------------------------------------
Refined oil 전극 (Optical 전극, hydrocarbons) / 2000-REFOIL
------------------------------------------------------------------------------------------------------------------------------------------------
CDOM 전극 (Optical 전극) / 2000-CDOM
------------------------------------------------------------------------------------------------------------------------------------------------
<교정/유지보수용>
250mL RapidCal solution / RC-300
------------------------------------------------------------------------------------------------------------------------------------------------
500mL RapidCal solution / RC-600
------------------------------------------------------------------------------------------------------------------------------------------------
3L RapidCal powder (Dilute with DI water ONLY) / RC-3LP
------------------------------------------------------------------------------------------------------------------------------------------------
10L RapidCal powder (Dilute with DI water ONLY) / RC-10LP
------------------------------------------------------------------------------------------------------------------------------------------------
250mL pH7.00 buffer / PH-700/300
------------------------------------------------------------------------------------------------------------------------------------------------
500mL pH7.00 buffer / PH-700/600
------------------------------------------------------------------------------------------------------------------------------------------------
250mL pH4.01 buffer / PH-401/300
------------------------------------------------------------------------------------------------------------------------------------------------
500mL pH4.01 buffer / PH-401/600
------------------------------------------------------------------------------------------------------------------------------------------------
150mL Zero oxygen solution / ZO-150
------------------------------------------------------------------------------------------------------------------------------------------------
500mL Zero oxygen solution / ZO-600
------------------------------------------------------------------------------------------------------------------------------------------------
25mL DO filling solution / DO-25
------------------------------------------------------------------------------------------------------------------------------------------------
25mL Storage solution / SS-25
------------------------------------------------------------------------------------------------------------------------------------------------
Calibration/Rinse bottle / BOT-300
------------------------------------------------------------------------------------------------------------------------------------------------
500mL bottle of CDOM calibration solution for point 2 CDOM calibration / CDOM-CAL-600
------------------------------------------------------------------------------------------------------------------------------------------------
25mL bottle of 20% WT Rhodamine dye stock calibration / RHOD-CAL
(Dilutions of this dye can be used to calibrate Chlorophyll, and both blue-green algae sensors.)
------------------------------------------------------------------------------------------------------------------------------------------------
1L bottle containing 0.5g Fluorescein power / FSCEIN-CAL
(Add 1L of deionised water for 500mg/L stock detailed in the manual.)
------------------------------------------------------------------------------------------------------------------------------------------------
500mL bottle of 1000ppm Ammonium sotck solution for dillution / AMM-CAL
------------------------------------------------------------------------------------------------------------------------------------------------
500mL bottle of 1000ppm Nitrate sotck solution for dillution / NIT-CAL
------------------------------------------------------------------------------------------------------------------------------------------------
500mL bottle of 1000ppm Chloride sotck solution for dillution / CHL-CAL
------------------------------------------------------------------------------------------------------------------------------------------------
500mL bottle of 1000ppm Calcium sotck solution for dillution / CAL-CAL
------------------------------------------------------------------------------------------------------------------------------------------------
500mL bottle of 1000ppm Fluoride sotck solution for dillution / FLU-CAL
------------------------------------------------------------------------------------------------------------------------------------------------
1000NTU calibration solution 500mL / TURB-1000
------------------------------------------------------------------------------------------------------------------------------------------------
250mV ORP calibration solution 500mL / ORP-250
------------------------------------------------------------------------------------------------------------------------------------------------
